Hangzhou Ocean Industry Co., Ltd hija waħda mill-manifatturi u fornituri ewlenin ta 'l-couplings tat-tip fiċ-Ċina. Merħba għal ktajjen industrijali durabbli bl-ingrossa u partijiet ta 'trasmissjoni ta' qawwa magħmula fiċ-Ċina hawn mill-fabbrika tagħna. Il-prodotti kollha personalizzati huma ta 'kwalità għolja u prezz kompetittiv.

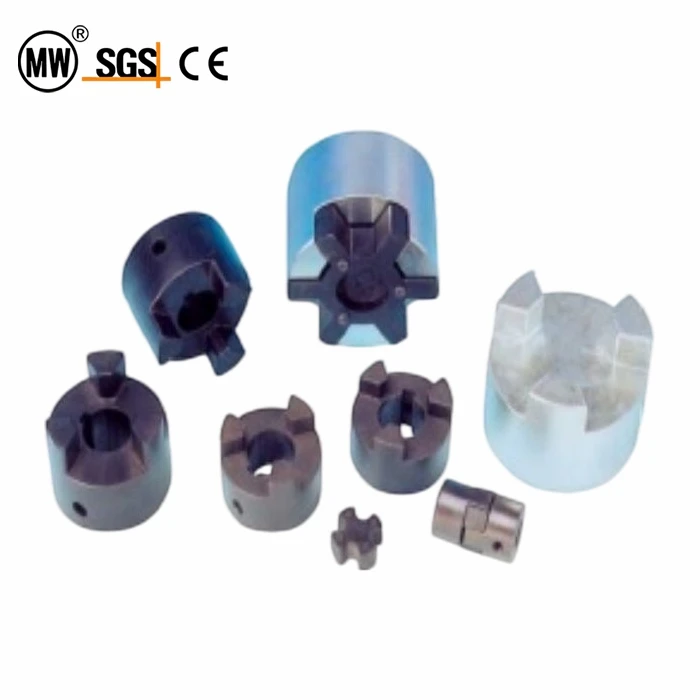

L--coupling jikkonsisti f'żewġ L-hubs standard u materjal spider standard L-coupling hub jinkludu ħadid tal-metallurġija tat-trab jew ħadid fondut.L-couplings b'disinn sempliċi, installazzjoni u manutenzjoni faċli, u ma jeħtiġux lubrikazzjoni.
Huwa kapaċi jakkomoda kemm allinjament assjali kif ukoll radjali, u jiżgura li xorta se jaħdem fil-każ ta 'allinjament ħażin.
Il-parti tal-brimba hija magħmula minn varjetà ta 'materjali, bħal gomma SOX (NBR), biex tissodisfa ħtiġijiet ta' applikazzjoni differenti u rekwiżiti ta 'torque.
Parametru
Firxa tal-prodott
| Standards | Tip ta' Serje | Firxa Daqs |
| ANSI | FB-BL | BL35-BL225 Apertura medja 1/8"-2 3/8" |
| DIN | CL | CL035-CL276 Apertura medja 8-70mm |

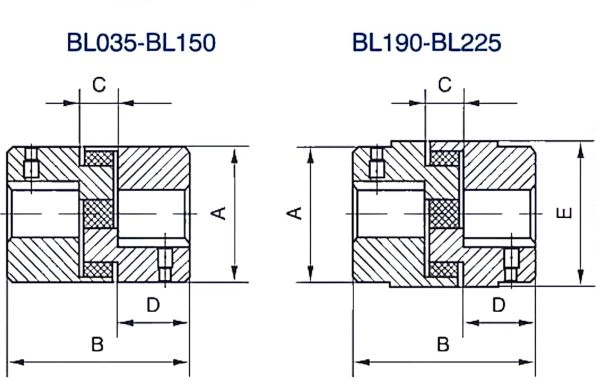

FB-BL
| Katalgu | Dimensjoni | Wt-Lbs | Torque ln.-Lbs | RPM massimu | Bore | ||||||
| A | B | C | D | E | Min Bore | Max Bore | Min | Max | |||
| BL 035 | 5/8 | 13/16 | 9/32 | 17/64 | - | 0.01 | 0.01 | 3.52 | 31000 | 1/8 | 3/8 |
| BL 050 | 15/64 | 123/32 | 15/32 | 5/8 | - | 0.29 | 0.24 | 25.8 | 18000 | 1/4 | 5/8 |
| BL 070 | 123/64 | 2 | 1/2 | 3/4 | - | 0.59 | 0.54 | 44.1 | 14000 | 1/4 | 3/4 |
| BL 075 | 13/4 | 21/8 | 1/2 | 13/16 | - | 1.00 | 0.86 | 88.2 | 11000 | 1/4 | 7/8 |
| BL 090 | 27/64 | 21/8 | 1/2 | 13/16 | - | 1.48 | 1.32 | 145 | 9000 | 1/4 | 1 |
| BL 095 | 27/64 | 21/2 | 1/2 | 1 | - | 1.75 | 1.52 | 189 | 9000 | 7/16 | 11/8 |
| BL 099 | 217/32 | 27/8 | 3/4 | 11/16 | - | 2.50 | 2.17 | 315 | 7000 | 7/16 | 13/16 |
| BL 100 | 217/32 | 31/2 | 3/4 | 13/8 | - | 3.42 | 2.92 | 415 | 7000 | 7/16 | 13/8 |
| BL 110 | 35/16 | 41/4 | 7/8 | 111/16 | - | 6.45 | 5.61 | 788 | 5000 | 5/8 | 15/8 |
| BL 150 | 33/4 | 41/2 | 1 | 13/4 | - | 8.95 | 7.73 | 1260 | 5000 | 5/8 | 17/8 |
| BL 190 | 4 | 51/4 | 1 | 21/8 | 41/2 | 8.83 | 7.04 | 1702 | 5000 | 3/4 | 21/8 |
| BL 225 | 41/4 | 6 | 1 | 21/2 | 5 | 12.28 | 9.60 | 2332 | 4000 | 3/4 | 23/8 |
CL
| Katalgu | Dimensjonijiet fundamentali | torgue meħtieġa nm | veloċità rotazzjonali rpm | Bore max mm | daqsijiet tat-toqba tal-istokk tal-couplings | Massa kg | ||||
| A | B | C | D | E | ||||||
| CL035 | 16 | 20.2 | 7.8 | 6.5 | - | 0.5 | 30.000 | 9 | 8.9 | 0.03 |
| CL050 | 28 | 43 | 12 | 15.5 | - | 3 | 17.000 | 16 | 10.12.14.16 | 0.13 |
| CL070 | 35 | 50.7 | 12.7 | 19 | - | 5 | 13.000 | 19 | 10.12.14.16.18.19 | 0.24 |
| CL075 | 45 | 55 | 12.7 | 20.5 | - | 10 | 10.000 | 24 | 12.14.16.18.19.20.22.24 | 0.40 |
| CL090 | 54 | 55 | 12.7 | 21 | - | 16 | 9.000 | 25 | 14.16.18.19.20.22.24.25 | 0.68 |
| CL095 | 54 | 64 | 12.7 | 25.5 | - | 22 | 9.000 | 29 | 14.16.18.19.20.22.24.25.28 | 0.71 |
| CL099 | 65 | 73 | 19 | 27 | - | 45 | 7.000 | 35 | 20.22 24.25 28.30.32.35 | 1.22 |
| CL100 | 65 | 89 | 19 | 35 | - | 50 | 7.000 | 35 | 20.22 24.2528.30.32.35 | 1.40 |
| CL110 | 84 | 108 | 22 | 43 | - | 90 | 5.000 | 42 | 25.28.30.32 35.38.40.42 | 3.0 |
| CL150 | 96 | 115.4 | 25.4 | 45 | 80 | 150 | 5.000 | 48 | 30.32 35.38.40.42.45.48 | 5.0 |
| CL190 | 115 | 133.4 | 25.4 | 54 | 102 | 200 | 5.000 | 54 | 35.38.40.42.45.48.50 | 7.6 |
| CL225 | 127 | 153.4 | 25.4 | 64 | 108 | 300 | 4.200 | 67 | 38.40. 42.45 48.50.55.60.65 | 9.0 |
| CL276 | 157 | 200 | 41 | 79 | 127 | 542 | 4.200 | 73 | 45.48.50.55.60.65.70 | 21.0 |
