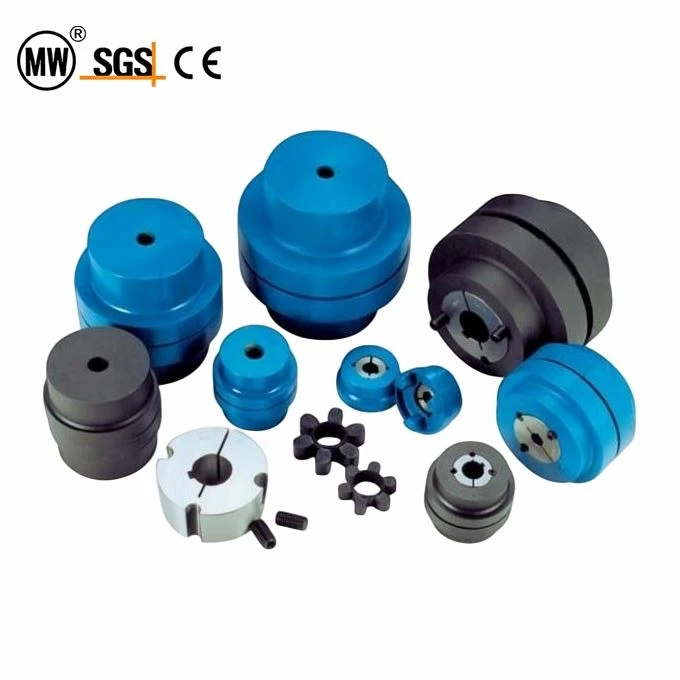

Hangzhou Ocean Industry Co., Ltd hija waħda mill-manifatturi u fornituri ewlenin ta 'couplings tat-tip hrc fiċ-Ċina. Merħba għal ktajjen industrijali durabbli bl-ingrossa u partijiet ta 'trasmissjoni ta' qawwa magħmula fiċ-Ċina hawn mill-fabbrika tagħna. Il-prodotti kollha personalizzati huma ta 'kwalità għolja u prezz kompetittiv.
Taper Bore Couplings huwa tip wieħed ta 'akkoppjar li jintuża ħafna. Huwa sempliċi biex jinbena, huwa sigur u affidabbli għall-użu u installazzjoni faċli u ta 'malajr mingħajr l-ebda għodda żejda meħtieġa. Kulma għandek bżonn huwa wrench hexagon.
Hemm ftit li xejn manutenzjoni jew lubrikazzjoni hija meħtieġa. L-akkoppjar tat-toqba tat-taper huma magħmula minn ħadid fondut ta 'grad għoli GG25 b'fosfat iswed. Is-saħħa se tiżgura tħaddim sikur taħt il-kundizzjonijiet nominali.
Parametru
Firxa tal-prodott
| Standards | Tip ta' Serje | Firxa Daqs |
| DIN | HRC (BTL jew Straight bore) | 70-280 |
HRC Taper bore serje universali

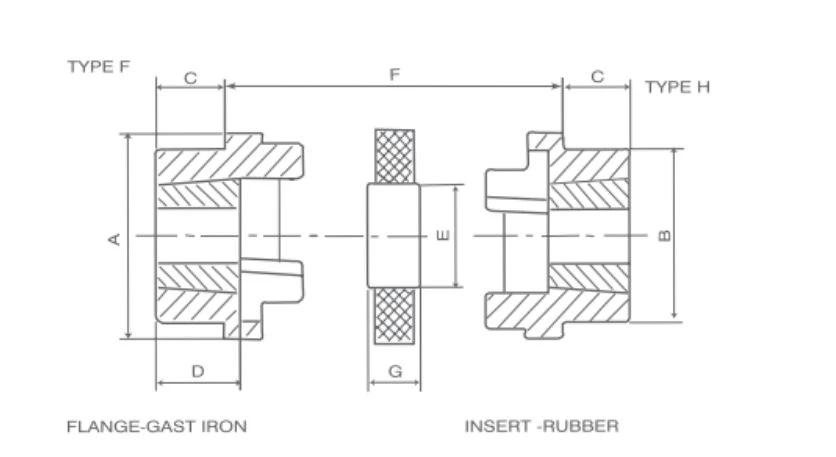

| Daqs | Bush | A | B | E | F | G | C | D | J | Max bore | L | Massimu allinjament ħażin |
Max Rivoluzzjoni n(rpm) |
Mument ta' inerzja (kg.cm²) |
G (Kg) |
||
| mm | nch | Parallel | Axia | ||||||||||||||
| 70 90 110 130 150 |
1008 1108 1610 1610 2012 |
69 85 112 130 150 |
60 70 100 105 115 |
31 32 45 50 60 |
25 30.5 45 53 60 |
18 22.5 29 36 40 |
20 19.5 18.5 18 23.5 |
23.5 23.5 26.5 26.5 33.5 |
29 29 38 38 42 |
25 28 42 42 50 |
1 11/8 15/8 15/8 2 |
65 69.5 82 89 107 |
0.3 0.3 0.3 0.4 0.4 |
+0.2 +0.5 +0.6 +0.8 +0.9 |
9100 7400 5630 4850 4200 |
8.5 11.5 40 78 181 |
1.00 1.17 5.00 5.46 7.11 |
| 180 230 280 |
2517 3020 3525 |
180 225 275 |
125 155 206 |
77 99 119 |
73 85.5 106 |
49 59.5 74.5 |
34.5 39.5 51 |
46.5 52.5 66.5 |
48 55 67 |
60 75 100 |
21/2 3 4 |
142 165 208 |
0.4 0.5 0.5 |
+1.1 +1.3 +1.7 |
3500 2800 2300 |
434 1207 4465 |
16.60 26.00 50.00 |
| J-id-distanza tal-wrench meħtieġa biex tissikka u tinħall il-bush fuq ix-xaft. | |||||||||||||||||
| L=2C+f | |||||||||||||||||
| Klassifikazzjonijiet tal-qawwa (KW) | ||||||||
| Veloċità rev/min |
Daqs tal-akkoppjar | |||||||
| 70 | 90 | 110 | 130 | 150 | 180 | 230 | 280 | |
| 100 200 400 600 720 |
0.33 0.66 1.32 1.98 2.37 |
0.84 1.68 3.35 5.03 6.03 |
1.68 3.35 6.70 10.1 12.1 |
3.30 6.60 13.2 19.8 23.8 |
6.28 12.6 25.1 37.7 45.2 |
9.95 19.9 39.8 59.7 71.6 |
20.9 41.9 83.8 126 151 |
33.0 65.0 132 198 238 |
| 800 960 1200 1440 1600 |
2.64 3.17 3.96 4.75 5.28 |
6.70 8.04 10.1 12.1 13.4 |
13.4 16.1 20.1 24.1 26.8 |
26.4 31.7 39.6 47.5 52.8 |
50.3 60.3 75.4 90.5 101.0 |
79.6 95.5 119 143 159 |
168 201 251 302 335 |
264 317 396 475 528 |
| 1800 2000 2200 2400 2600 |
5.94 6.60 7.26 7.92 8.58 |
15.1 16.8 18.4 20.1 21.8 |
30.2 33.5 36.9 40.2 43.6 |
59.4 66.0 72.6 79.2 85.8 |
113 126 138 151 163 |
179 199 219 239 259 |
377 419 461 503 545 |
594 660 726 |
| 2880 3000 3600 |
9.50 9.90 11.9 |
24.1 25.1 30.1 |
48.3 50.3 60.3 |
95 99 118 |
181 188 226 |
286 298 |
||
| Torque nominali (Nm) | 31.5 | 80 | 160 | 315 | 600 | 950 | 2000 | 3150 |
| Torgue Max (Nm) | 72 | 180 | 360 | 720 | 1500 | 2350 | 5000 | 7200 |
